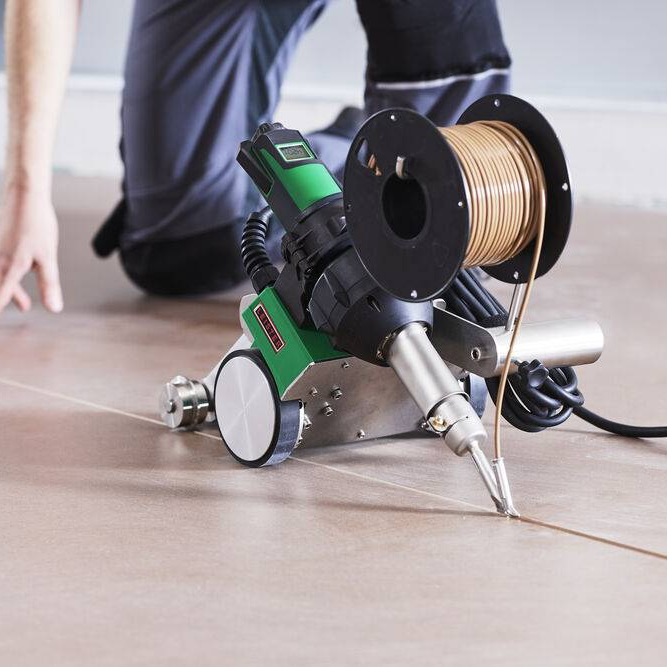

The MINIFLOOR drive unit transforms the TRIAC into a practical, automatic floor welder. The quick-clamp lock on the holder allows the TRIAC to be assembled and disassembled within a matter of seconds. Its light weight of 6.6 kg (14.55 lbs) makes the MINIFLOOR easy to transport. The drive unit alone weighs 5.3 kg (11.7 lbs). All LEISTER and WELDY speed welding nozzles for flooring will fit. The MINIFLOOR is already worth using for weld seam lengths of 1.20 m (3.9 ft).
The ingenious design of the MINIFLOOR with a TRIAC allows floor welding directly from wall to wall. Only one transition per weld seam is needed and time-consuming, wall welding connections are no longer necessary. A minimum wall distance of 51 mm (2.05 in) for floor welding is possible thanks to the hot air tool positioned on the outside to the right. It ensures hassle-free welding of common fillets (L-angle base profiles) or even elevations. Despite its light weight, the MINIFLOOR has a welding speed of over 2 meters per minute (6.56 feet per minute). That is twice as fast as manual welding. With the individually adjustable start-up on the MINIFLOOR drive unit, the start-up speed can be adapted to personal preferences at any time. The guide arm can be quickly positioned in the groove and the guide roller runs precisely along the joint line, even if the joint preparation is inadequate. The compact size of the MINIFLOOR allows continuous welding underneath anything as low as 11.6 inches (e.g. with pre-assembled bench frames in trains, buses, trains and more).
HIGHLIGHTS - Easy, fast, economical
FAST - Despite its light weight
The MINIFLOOR automatic welder has a welding speed of approximately 2 m/min or 6.56 ft/min respectively, which is nearly twice as fast as manual welding.
EFFICIENT - Quick-clamp lock
The quick-clamp lock on the TRIAC holder allows the assembly and disassembly of the TRIAC heat gun within a matter of seconds.
INDIVIDUAL - Integrated approach sensor
The individually adjustable s
