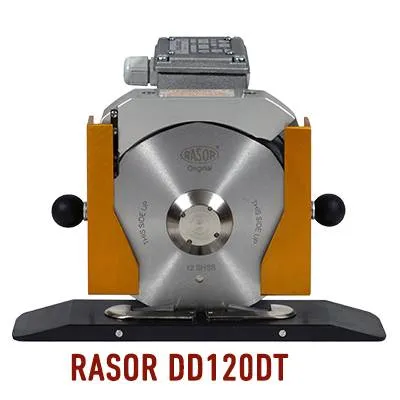

OEM Direct Drive

This series is part of latest technology of Rasor Direct Drive such as knife installed on same axis of motor. All machines are specially designed with 3-phase induction motors, are balanced and virtually noiseless, 380/400 V, 50 Hz. These machines are specially studied for transversal and no-stop cut and are arranged with a anchor flange easy to be fitted on fixed or automatic stirrup. The aluminium Teflon® coated base reduces friction between the foot and the material and allows for easy forward movement even for an installation on sliding rails. The new particular building geometry "Monster" style avoids the trouble on winding for composite material such as the winding of the fiber behind the knife. High-adjustable blade protection in anodized aluminium. CLF - IP20 electric insulation. Applications in Textile, Leather, Carpet, Technical Fabrics, Rubber / Plastic based materials. These machines have no coupling gear which means no maintenance (i.e. the lubrication with grease) reducing therefore also the operation cost while using during the no-stop 24h/day production process. The push button sharpening stone allows sharpening of knife edge to be done in less that 10 seconds without removing the knife.
